Description
Durable freestyle Chromoly frame with contemporary geometry

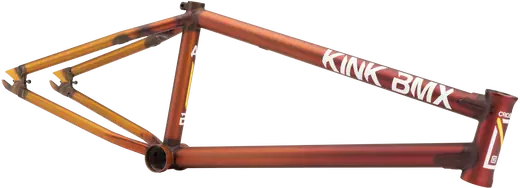

The Crosscut Freestyle BMX Frame by Kink is an exceptionally durable frame crafted entirely from Chromoly tubing. It incorporates a modern geometry that accommodates tyres up to 2.55 inches, has a compact 12.5-inch rear, and a higher 9.25-inch standover height.
Technical specifications
- Constructed entirely from 4130 Chromoly
- Features double-butted top and downtube with both top and bottom gussets
- Investment cast chainstay yoke allowing space for tyres up to 2.55 inches
- Built-in chain tensioners to maintain a consistently tight chain
- Compact 12.5-inch (slammed) rear end for technical riders
- Higher 9.25-inch standover height for a sleek and elegant appearance
Model specifications
| Model | Frame Top Tube |
| 20" - Serpent Purple | - |
| 20.5" - Ed Black | 20.5" |
| 20.5" - Serpent Purple | - |
| 20.75" - Ed Black | 20.75" |
| 20.75" - Serpent Purple | - |
| 21" - Serpent Purple | - |
| 21.25" - Ed Black | 21.25" |
| 21.25" - Matte Slate Blue | 21.25" |
Specifications
BMX Discipline:
Freestyle BMX
Bike type:
Freestyle
Frame material:
Chromoly Steel
Weight:
4lbs
Frame brakemounts:
Removable brakemounts
Brake Mount Kit:
Not included
Frame standover height:
9.25" (23.5cm)
Chainstay length (Slammed):
12.5" (31.8cm)
Dropout size:
14mm
Chain Tensioners:
Yes
Bottom Bracket:
Mid
Gyro compatible:
Yes
Seat clamp:
Integrated
Headset type:
Integrated 1 1/8"
Headtube angle:
71°
Headtube length:
127mm
